Descripción
VMP404. MÓDULO DE CÁMARA NoIR PARA RASPBERRY PI®
VMP404

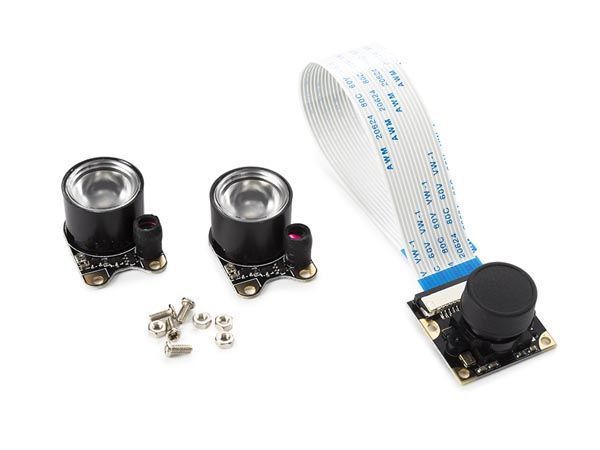

If you want to add a camera to your Raspberry Pi board, but also want night vision to see in the dark, then the VMP404 is your solution! The 2 IR lights boards with build-in light sensor can be connected to the central camera module by using the supplied screws. The IR light will turn on when the build-in sensors will detect limited light in the area. Plug-and-play, a tiny size and 5 megapixels to stream in 1080p!
Características:
Embedded removable IR-CUT filter, eliminating color distortion in the daylight
- Comes with infrared LED, supports night vision
- 4 screw holes to fix the IR lights
- Compatible with all Raspberry Pi Boards
Especificaciones:
sensor: OmniVision OV5647
- resolución instantánea: 5 megapíxeles
- modos de vídeo: 1080p @ 30fps – 720p @ 60 fps – 640×480 @ 60/90 fps
- resolución sensor: 2592 x 1944 píxeles
- área de imagen sensor: 3.76 x 2.74 mm
- full frame SLR lens equivalent: 35 mm
- distancia focal (regulable): 3.6 mm
- campo de visión: 130 degrees
- apertura (F): 1.8 mm
- relación señal/ruido: 36 dB
- rango dinámico: 67 dB @ 8x gain
- dimensiones: 22 x 25 x 15 mm (0.87 x 0.99 x 0.6″)
- peso: 3 g
- iluminación IR (2): 3.3 V, se fija a la cámara con tornillos 2 x 2 (incl.)
