TDT HDMI DVB-T2 formato mini con I.R.

35,00  + IVA

8 disponibles

Me gusta
Me gusta
SKU: 040514 Categorías: ,


TDT HDMI DVB-T2 formato mini con mando


Main features

  • Receiver type: DVB-T2 terrestrial HD TV receiver
  • Main chipset: MSTAR 7T10E
  • Inputs/outputs: RF IN, HDMI, mirco USB, IR
  • Tuner type: R836


  • CPU clock: 1200 DMIPS
  • FLASH memory: 4MB
  • DDR2 memory: 512Mb

DVB-T2 tuner

  • Tuner type: R836
  • Video frequency range: VHF: 5-226.5MHz; UHF: 474-866MHz
  • Input impedance: 75Ω
  • Antenna power: 5V
  • Video bandwidth: SD: 0MHz (-3dB); HD: 30MHz (-3dB)
  • Video impedance: 75Ω
  • Video voltage level: 0 Vp-p
  • Demultiplexer: MPEG2 ISO/IEC 13818-2; MPEG4 ISO/IEC 14496-2
  • Input data transfer rate: Max 100Mbit/s
  • Video decoding: 265 (HEVC/H.265), BP/MP/HP up to L4.1 & H.263 P3; H.264 (ISO/IEC 14496-10), BP/MP/HP up to L4.1; MPEG-4 (ISO/IEC 14496-2), SP/ASP up to L5; MPEG-2 (ISO/IEC 13818-2), MP@HL; MPEG-1 (ISO/IEC 11172-2)
  • Aspect ratio: 4:3, 16:9
  • Video resolution: 1920×1080, 1280×720, 720×480
  • Audio frequency range: 20~20KHz
  • Impedance: 600Ω
  • Voltage level: 2V rms (5.6 Vp-p)
  • Decoding: MPEG-1 layer I/II; PCM downmix; Dolby 1 channel; Dolby Digital Plus; Dolby downmix 2 channel; Dolby Prologic2
  • Audio mode: Left/Right/Stereo/Mono
  • Sampling rate: 32KHz, 1KHz, 48KHz

Software features

  • MPEG: SD MPEG-2/HD 264/H.265

fully compatible with DVB-T2

  • PAL/NTSC: Automatic PAL/NTSC conversion
  • Number of channels: 3000 programmable TV and radio channels
  • Favorites: Selection of 8 different favorite groups
  • OSD Language: On-screen interface with multi-language support
  • EPG: Full support up to 7 days
  • OSD interface: Sixteen bit color OSD
  • Channel Search: Automatic and manual search
  • Channel Editing: Various editing functions (add to favorites, move, lock, rename, sort and more)
  • Save Channels: Automatically save the last channel
  • Parental Control: Parental control for channels
  • Easy menu: Easy to use menu system
  • Software updates: Via USB port
  • Time Settings: Time set by automatic or manual GMT offset, summer/winter time supported
  • Timers: Auto turn off/on by setting timers (multiple settings available)
  • Screen subtitles: Support for DVB EN300743 and EBU subtitles
  • Teletext: Support for DVB ETS300472 VBI and OSD teletext
  • LCN: Support for Logic Channel Number (LCN)
  • USB drive support: FAT16/FAT32/FAT12 and NTFS file systems supported
  • Media Player: Supported formats MP3/JPEG/BMP/OGG
  • Recording: Default 2 The user can set the start and end times of channel recording and record both scrambled and uncoded programs
  • Recordings support: Lock/Delete/Rename/ Preview/Play/Browse recordings
  • Timeshift: Fast forward/rewind * 2/4/8/16/24; Slow forward/ rewind * 1/2, 1/4, 1/8; Bookmark setting/jump to a bookmark

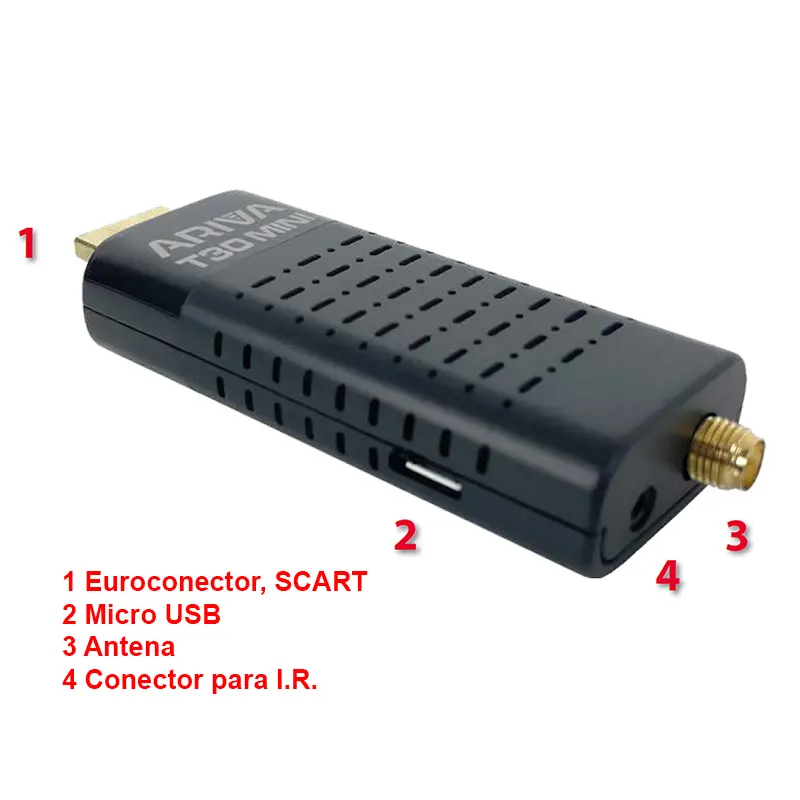

Hardware features

  • ANT IN: IEC 169-2, female
  • DV-Out: 19 PIN female 4b
  • Power supply: 5V
  • IR: 38KHz
  • USB: Mirco USB
  • Remote control battery type: 2 x 5V AAA


  • TV antenna adapter
  • DV-Out Extension Cable
  • USB cable
  • IR signal receiver
  • Learning remote control RCU33
  • User manual

Power, physical characteristics, certification

  • Input voltage: 5V 1A via USB port
  • Maximum power consumption: 5W
  • Working temperature: -5 ~ 45°C
  • Storage temperature: -40 ~ 60°C
  • Humidity: up to 95%
  • RoHS: Yes
