Descripción

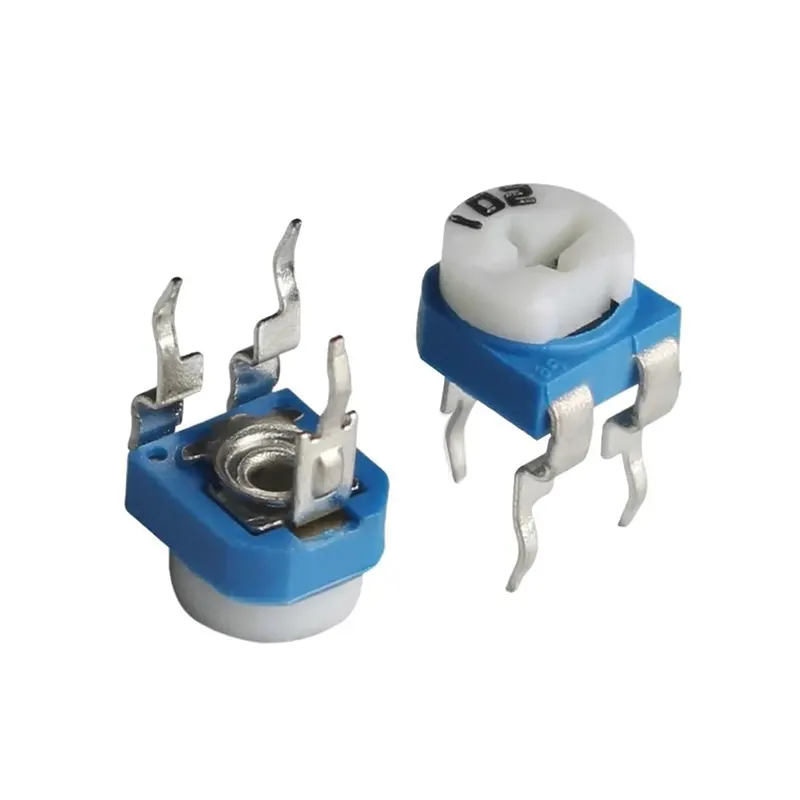

RM065. Potenciómetro ajustable 500Ω 0.25w
RM065 500Ω
| ELECTRICAL CHARACTERISTICS | |
| Standard Resistance Range | 10 to 1M ohms (see standard
resistance table) |
| Resistance Tolerance | ±30% |
| Contact Resistance Variation | R<1K ohm: 30 ohm max. R>1K ohm: 3% max. |
| Resolution | Infinite |
| Rotational Angle | 210°± 20° |
| Resistance Taper | Linear (B) |
| ENVIRONMENTAL CHARACTERISTICS | |
| Power Rating | 0.1W (at 50℃) |
|
Max Operating Voltage |
50V/DC (100-500K ohm)
25V/DC (>500K ohm) |
| Operating Temperature Range | -10℃ to +70℃ |
| Rotational Life | 20±2 cycles |

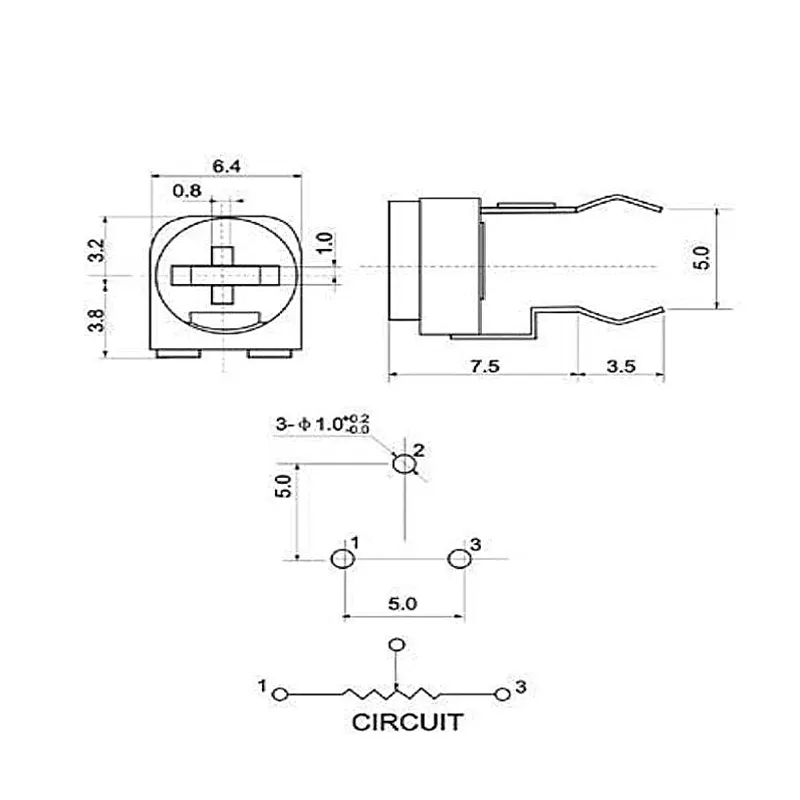

| PHYSICAL CHARACTERISTICS | |
| Rotational Torque | 20-250 g-cm |
| Stop Strength | >350 g-cm |
| Terminals | Solderable pins |
| Marking | Resistance code |
| STANDARD RESISTANCE TABLE | |||
| Resistance (Ohms) | Resistance Code | Resistance (Ohms) | Resistance Code |
| 100
200 500 1,000 2,000 5,000 10,000 |
101
201 501 102 202 502 103 |
20,000
50,000 100,000 200,000 500,000 1,000,000 |
203
503 104 204 504 105 |
