Descripción

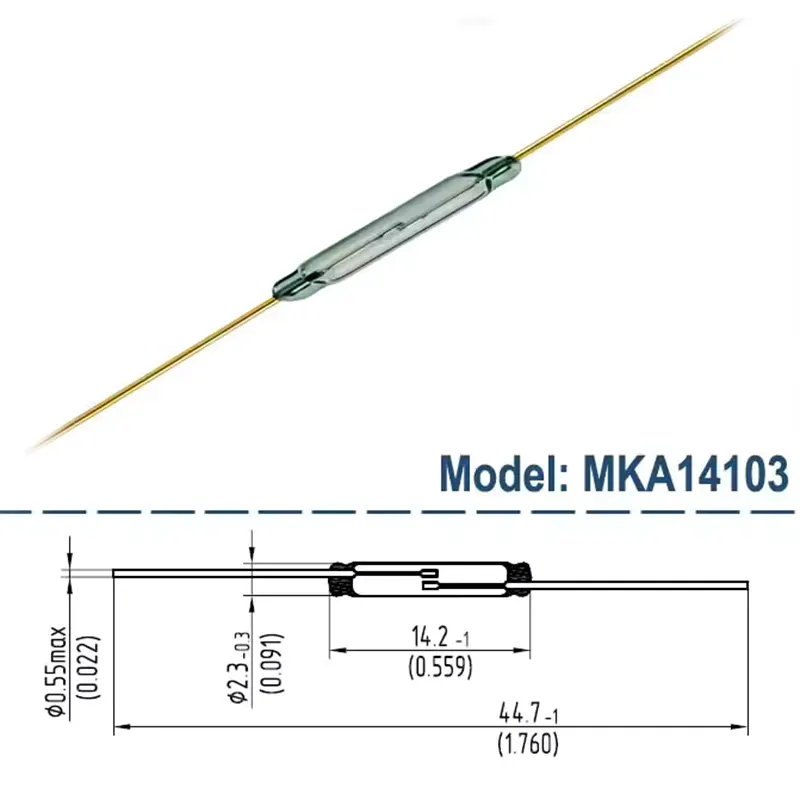

MKA-14103. Relé Reed magnético normalmente abierto
MKA-14103
Relé reed
Reed Switch 2x14mm vidrio verde normalmente abierto contacto para sensores 100% Original NO
- Teoría: Sensor magnético
- Salida: Transductor de conmutación
- Modelo: Reed Switch
Especificaciones:
| Contact material | Ru |
| Maximum switching power, W | 10 |
| Maximum switching voltage, V | 100 |
| Maximum switching current, A | 0.5 |
| Maximum carrying current, A | 1.0 |
| Pull in, AT | 10-35 |
| Drop out, AT min. | 5 |
| Contact resistance, Ohm max. | 0.1 |
| Breakdown voltage, V dc. | 220 min
250 max |
| Insulation resistance, Ohm min. | 1010 |
| Operate time, ms max. | 1.0 |
| Release time, ms max. | 0.4 |
| Capacitance, pF max. | 0.7 |
| Resonant frequency, Hz min. | 4000 |
| Operate temperature range, 0C | -60 ~ +155 |
| High humidity, % max. | 98 |
| Operation frequency, Hz max. | 100 |
