Descripción

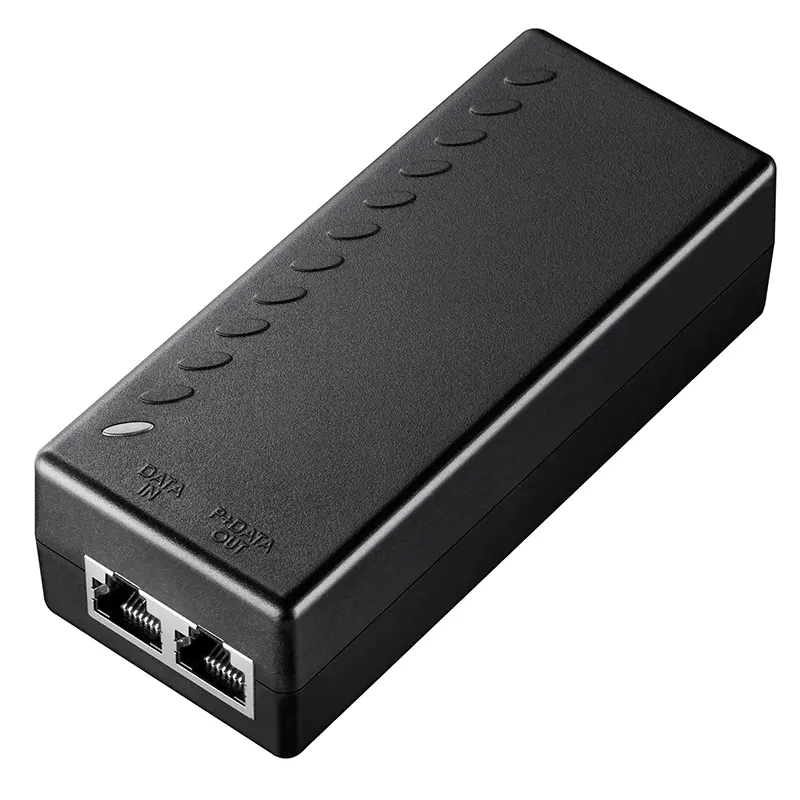

POE200. Inyector POE 30W GIGABIT Cudy
POE200
- Up to 30W Power Supply
- Supports 10/100/1000 Base-T applications
- LED indicators power input and PoE output
- Internal AC/DC converter no need for external power brick
- Easy plug-and-play installation
- Muti-protection
Características POE200:
| Model | POE200 |
| No. of channels | 1 |
| Pass Through Data Ratesi | 10/100/1000Mbps |

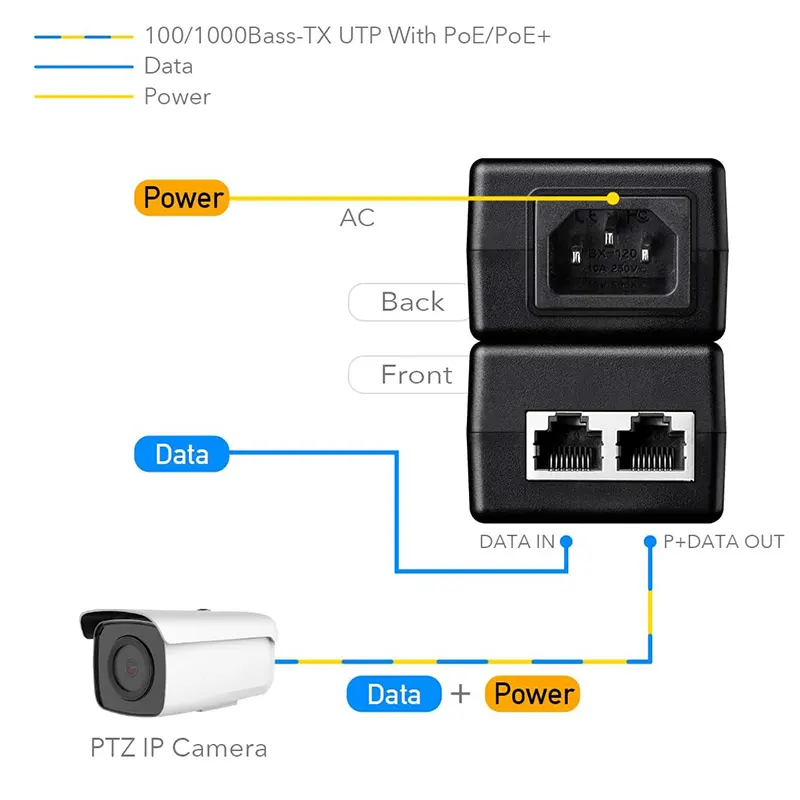

| Power over Ethernet Output | Pin Assignment and Polarity: 1/2 (-), 3/6 (+) |
| Output Power Voltage: 54VDC | |
| User Port Power: 30W max | |
| Input Power Requirements | AC Input Voltage: 100 to 240 VAC |
| AC Input Current: 0.5A 100-240 VAC | |
| AC Frequency: 50 to 60 Hz | |
| Dimensions | 121mm x 50mm x 36mm |
| Indicators | System Indicator: AC Power |
| User Indicator: Channel Power | |
| Connectors | Shielded RJ-45, EIA 568A and 568B |
| Protection | Over current protection |
| Over load protection | |
| Over voltage protection | |
| Anti-interference protection | |
| Environmental Conditions | Operating Ambient Temperature:-40 to 40℃ |
| Operating Humidity: Maximum 85%, Non-condensing | |
| Storage Temperature:-40 to 50℃ | |
| Storage Humidity: Maximum 90%, Non-condensing |
