Descripción

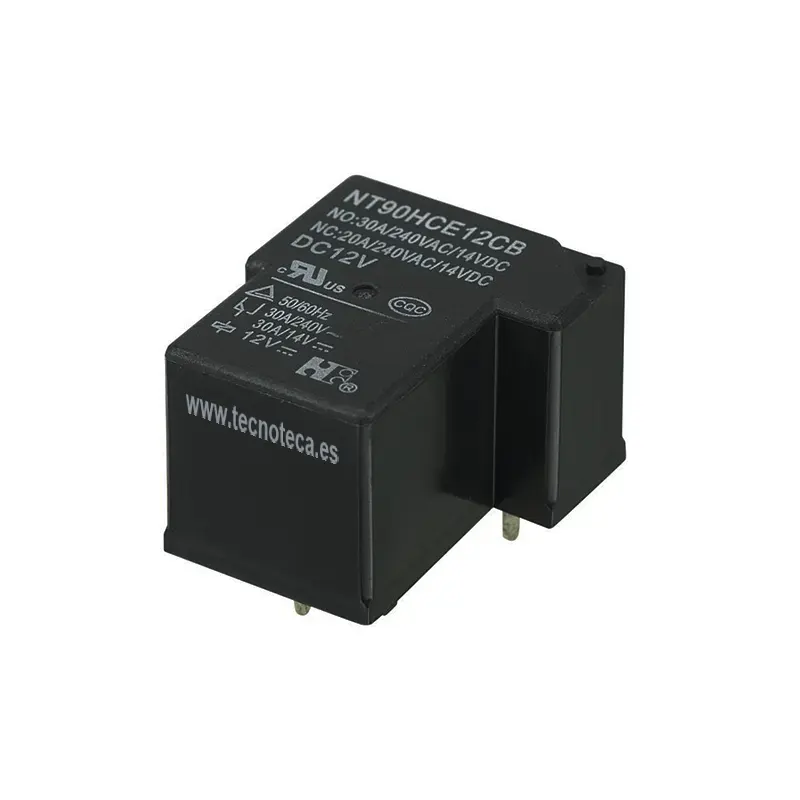

NT90HCE12CB . Relé de 12VDC 1AC 30A 6 pines
NT90HCE12CB
- Small size, light weight.
- Low coil power consumption, heavy contact
- Strong anti-shock and anti-vibration, high reliability, long
- PC board
- 1W versions with contact gap to 2.0mm.
- Suitable for automobile, machine, electronic equipment, air conditioner and household appliances
Datos contacto
| Contact | Arrangement | 1A (SPSTNO ) 1B | |
| Contact | Material | AgCdO AgSnO, | |
| Contact Rating (resistive) | NO:30A/240VAC, 14VDC; NC:20A/240VAC;30A/14VDC | ||
| NO:40A/240VAC,30VDC; NC: 30A/240VAC, 30VDC (0.9W) | |||
| 20A/240VAC(NT90R1.1) | |||
| NO:30A/277VAC;NC:20A/277VAC | |||
| Motor load: NO:2H P 250VAC ; NC:1.5HP 250VAC | |||
| Lamp load: TV-5 5A/280VAC(Ballast) | |||
| Max. Switching Power | 1200W 7200VA 11OOOOVA) | ||
| Max. Switching Voltage | 110VDC 300VAC | ||
| Contact Resistance or Voltage drop | 30m 0 | ||
| Operation | Electrical | 10* 2 x 10′ (for NT90R1.1) | |
| life | |||
| Mechanical | 10’ 5 10‘ (for NT90R1.1) | ||
