Descripción

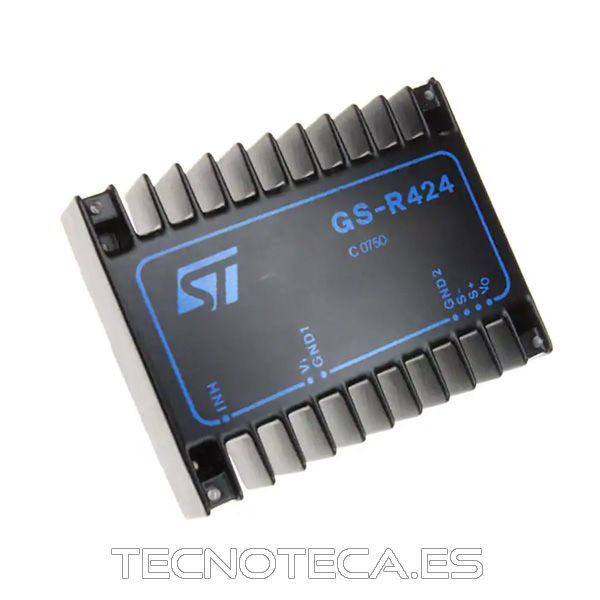

GS-R424. Fuente conmutada de 24VDC reductora
GS-R424.
Descripción:
- Convertidor de DC a DC.
- Tensión de entrada de 28V a 46V, reductora (Step Down), tensión de salida 24V 4A 140W 12-Pines.
Especificaciones técnicas del producto:
| HTS | 8542.39.00.01 |
| Package Height | 21.3 |
| Mounting | Through Hole |
| PCB changed | 12 |
| Package Width | 46 |
| Package Length | 85.5 |
| Type | Synchronous Step Down |
| Isolation | Isolated |
| Output Type | Fixed |
| Switching Frequency (kHz) | 100(Typ) |
| Switching Regulator | Yes |
| Number of Outputs | 1 |
| Output Voltage (V) | 24 |
| Maximum Output Current (A) | 4 |
| Maximum Output Power (W) | 140 |
| Minimum Input Voltage (V) | 28 |
| Maximum Input Voltage (V) | 46 |
| Line Regulation | 6mV/V |
| Load Regulation | 90mV/A |
| Efficiency (%) | 90 |
| Minimum Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 85 |
| Packaging | Loose |
| Pin Count | 12 |
