Descripción

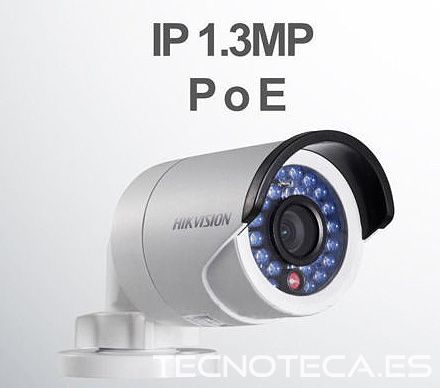

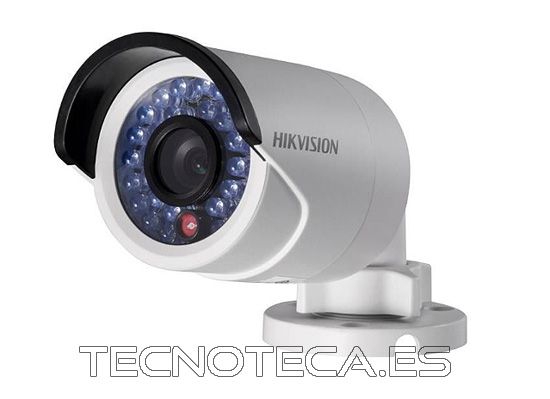

DS-2CD2010-I. Cámara IP MINI BULLET HD IP66 1.3 Mpx
DS-2CD2010-I
Descripción:
The DS-2CD2010-I K1762 camera comes from a new series of Hikvision products – HiWatch. This series of low-budget devices, IP cameras and IP NVRS, is dedicated for anyone who wants to build low-cost IP CCTV system.
The DS-2CD2010-I camera has been equipped with high quality 1.3 MP CMOS sensor providing perfect video even in low-light conditions. A special feature of this model is small size – the length is only 14 cm.
Thanks to H.264 compression, the data stream is minimized. The user can configure two independent streams (primary and secondary), as well as choose H.264 or MJPEG compression and limit the bandwidth within 32 kb/s to 16 Mb/s range.
The DS-2CD2012-I compact camera can operate outdoors or indoors. Its housing with high ingress protection rating (IP66) protects the electronics against adverse weather conditions. The built-in IR illuminator has a range of up to 30 m.
The camera can be powered with a 12 VDC power source or via PoE (802.3af).
Key features:
- Resolution: 1.3 MP
- Functions: 3DDNR, DWDR, BLC
- IP rating: IP66
- IR range: up to 30 m
- Mechanically Switching IR filter
Specifications:
| Name | HIKVISION DS-2CD2010-I |
| Code | K1762 |
| Type | Compact |
| Compression | H.264/MJPEG |
| Resolution | 1280×960 |
| Dual-stream | Yes |
| Frame rate | 25 fps |
| Image sensor | 1/3″ Progressive Scan CMOS |
| Sensitivity | 0.01 lx @F1.2 with AGC 0 lx in IR mode |
| Focal length | 4 mm |
| Horizontal viewing angle | 69o |
| Mechanically switching IR filter | Yes |
| Brightness control | Yes |
| Sharpness control | Yes |
| Gain | Automatic/Preset |
| Alarm events | Motion detection, dynamic analysis, tampering |
| Recording | Remote FTP server, NAS server |
| Network interface | RJ-45 10/100Base-T |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| ONVIF | Yes |
| Power | 12 VDC ± 10% PoE IEEE 802.3af |
| Power consumption | 5 W (max 7 W with IR) |
| Startup temperature range | -10°C … 40°C |
| Operating temperature range | -30°C … 60°C |
| Dimensions | 60.4 × 76.9 × 139.28 mm |
| Weight | 500 g |
