Descripción

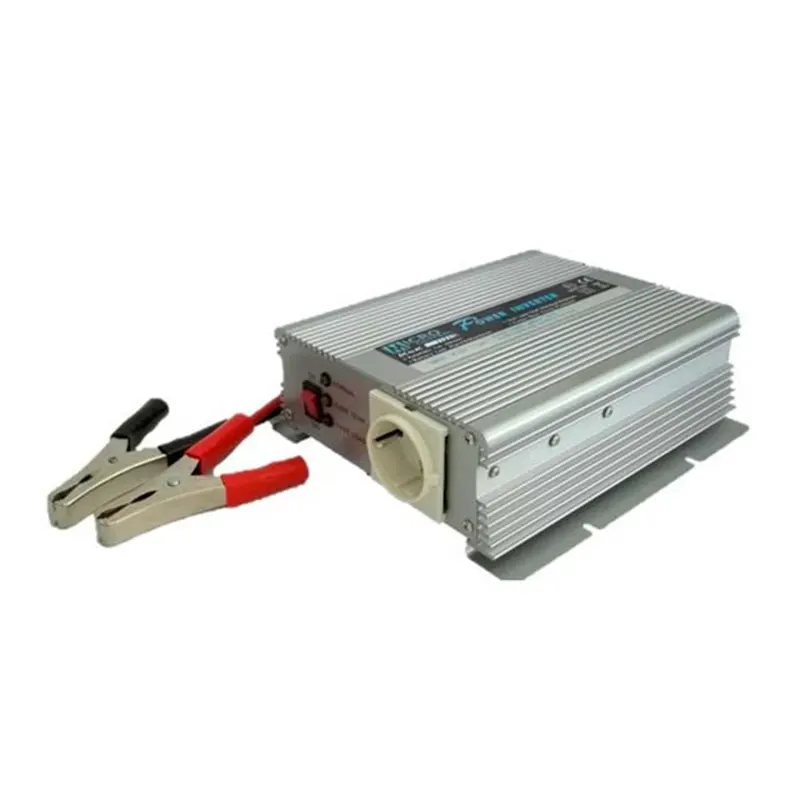

A301-600-F3. Inversor 12VDC/230VAC 600W
A301-600-F3
Fabricante: AKOWA Electronics Co. Ltd.
Características:
| Dato | DC12V | DC24V |
| OUTPUT POWER | 600W CONTINUE 1500W FOR SURGE OUTPUT |
|
| INPUT VOLTAGE | DC 10~15 V | DC 20~30 V |
| OUTPUT VOLTAGE | AC 100V,110V,120V,220V,230V,240V | |
| OUTPUT VOLTAGE REGULATION | +/- 5% | |
| OUTPUT WAVEFORM | MODIFIED SINE WAVE | |
| OUTPUT FREQUENCY | 50 OR 60 HZ | |
| BATTERY LOW ALARM | DC 10+/- 0.5V | DC 20+/- 0.8V |
| BATTERY LOW SHUTDOWN | DC 9.5 +/- 0.5 V | DC 19.5 +/- 0.8 V |
| STANDBY CURRENT | < 0.5A | < 0.35A |
| EFFICIENCY | 85~90% | |
| THERMAL PROTECT | 60 +/- 0.5oC | |
| COOLING | WISDOM FAN START : WHEN THE OUTPUT REACH 200W THE TEMPERTURE REACH 45oC, THE FAN WILL START AUTOMATICALLY |
|
| PROTECTIONS | SOFT START
OUTPUT SHORT : SHUTDOWN INPUT POLARITY REVERSE : BY FUSE HIGH VOLTAGE INPUT : SHUTDOWN LOW VOLTAGE INPUT : SHUTDOWN OVERLOAD : SHUTDOWN OVERTEMPERTURE : SHUTDOWN AFTER BUZZER KEEP BATTERY LOW : ALARM INTELLIGENT FAN CONTROL TROUBLE DISPLAY : LED |
|
| FUSE | 25 A x 3 | 20 A x 3 |
| AC OUTLET |
TWO AC OUTLET (TYPE 1,2) |
|
| SIZE(LxWxH) | 213 x 200 x 70 MM | |
| WEIGHT | 2 kgs | |
