Descripción

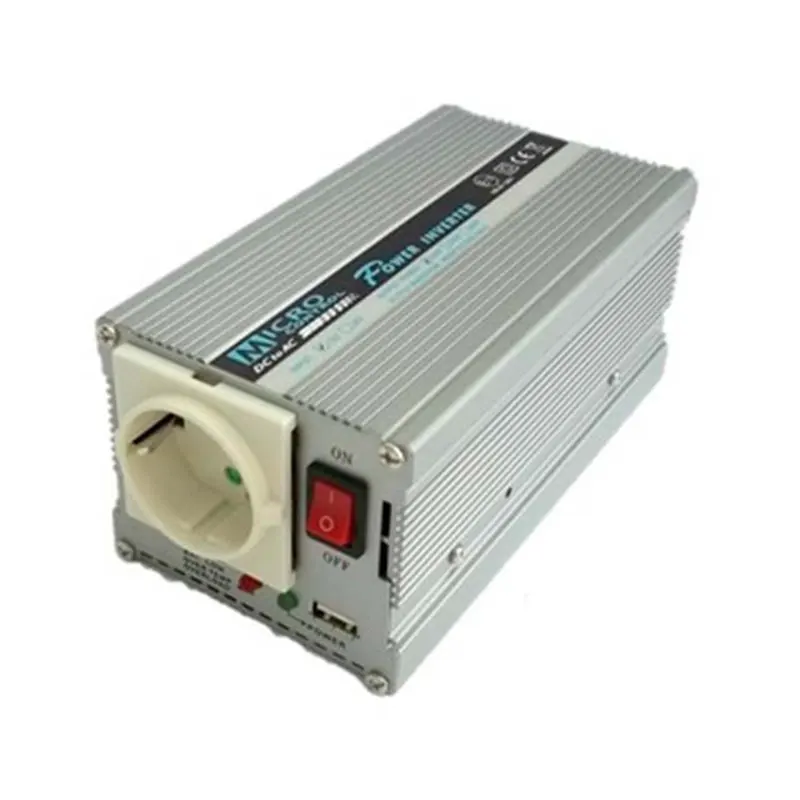

A301-300-F3. Inversor 12VDC/230VAC 300W + USB
A301-300-F3
Fabricante: AKOWA Electronics Co. Ltd.
Características:
| Dato | DC12V | DC24V |
| OUTPUT POWER | 300W CONTINUE 350W ( 30 MIN ) 600W FOR SURGE OUTPUT |
|
| INPUT VOLTAGE | DC 10-15V | DC 20-30V |
| OUTPUT VOLTAGE | AC 100V,110V,120V,220V,230V,240V | |
| OUTPUT VOLTAGE REGULATION | +/- 5% | |
| OUTPUT WAVEFORM | MODIFIED SINE WAVE | |
| OUTPUT FREQUENCY | 50 OR 60 HZ | |
| BATTERY LOW SHUTDOWN | DC 9.5+/- 0.5V | DC 19.5+/- 0.8V |
| STANDBY CURRENT | 0.36A | 0.2A |
| EFFICIENCY | 90% | |
| USB POWER OUTPUT | DC 5V 500mA (MAX.) | |
| THERMAL PROTECT | 60 +/- 0.5℃ | |
| COOLING | WISDOM FAN START : WHEN THE OUTPUT REACH 100W OR THE TEMPERTURE REACH 40℃,THE FAN WILL START AUTOMATICALLY | |
| PROTECTIONS | SOFT START
OUTPUT SHORT : SHUTDOWN INPUT POLARITY REVERSE : BY FUSE HIGH VOLTAGE INPUT :SHUTDOWN LOW VOLTAGE INPUT : SHUTDOWN OVERLOAD : SHUTDOWN OVERTEMPERTURE : SHUTDOWN AFTER BUZZER KEEP BATTERY LOW : ALARM INTELLIGENT FAN CONTROL TROUBLE DISPLAY : LED |
|
| FUSE | CIGARETTE PLUG :15A BATTERY CORD:35A |
CIGARETTE PLUG:10A BATTERY CORD:20A |
| AC OUTLET |
TWO AC OUTLET ( TYPE 1,2 ) |
|
| SIZE(LxWxH) | 165x88x74 mm | |
| WEIGHT | 0.9 kgs | |
