Descripción

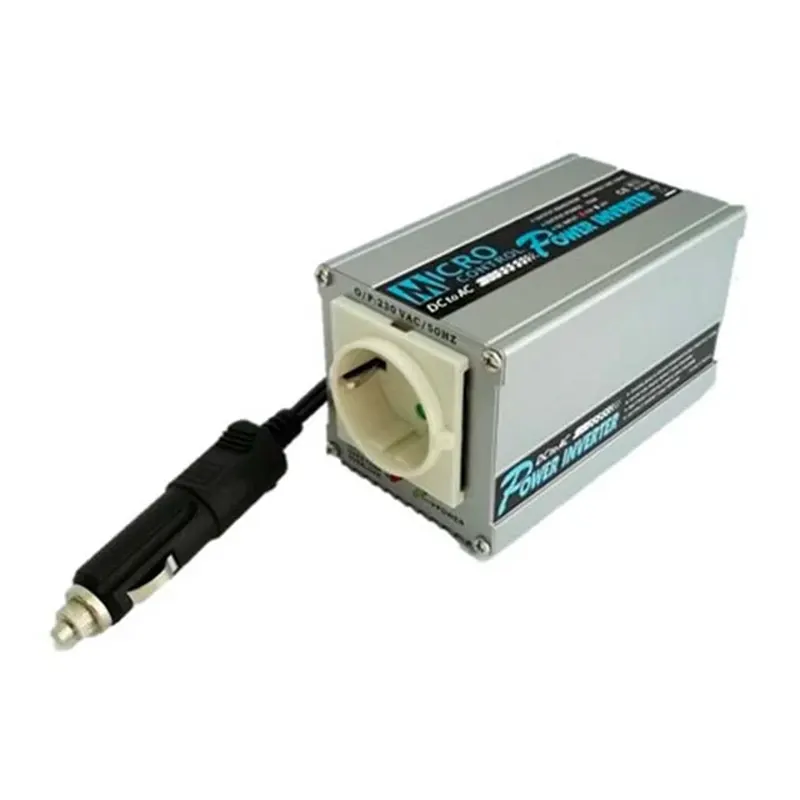

A301-150-F3. Inversor 12VDC/230VAC 150W
A301-150-F3
Fabricante: AKOWA Electronics Co. Ltd.
Características:
| Dato | DC12V | DC24V |
| OUTPUT POWER |
150W CONTINUE |
|
| INPUT VOLTAGE | DC 10~15 v | DC 20~30 V |
| OUTPUT VOLTAGE | AC 100 V,110 V,120 V,220 V,230 V,240 V | |
| OUTPUT VOLTAGE REGULATION |
+/- 5 % |
|
| OUTPUT WAVEFORM | MODIFIED SINE WAVE | |
| OUTPUT FREQUENCY | 50 OR 60 HZ | |
| BATTERY LOW SHUTDOWN | DC 10+/- 0.5V | DC 20 +/- 0.8 V |
| BATTERY LOW SHUTDOWN | DC 9.5 +/- 0.5 V | DC 19.5 +/- 0.8 V |
| STANDBY CURRENT | 0.2A | 0.2A |
| EFFICIENCY |
90% |
|
| THERMAL PROTECT | 60 +/- 0.5oC | |
| COOLING | BY AIR CONVECTION | |
| PROTECTIONS | SOFT START
OUTPUT SHORT : SHUTDOWN INPUT POLARITY REVERSE : BY FUSE HIGH VOLTAGE INPUT :SHUTDOWN LOW VOLTAGE INPUT : SHUTDOWN ※OVERLOAD : SHUTDOWN OVERTEMPERTURE : SHUTDOWN AFTER BUZZER KEEP BATTERY LOW : ALARM TROUBLE DISPLAY : LED |
|
| FUSE | 15 A | 10 A |
| AC OUTLET | ONE AC OUTLET | |
| SIZE ( LxWxH ) | 122x77x45 mm (TYPE 1, 2) 122x77x70 mm (THE OTHER) |
|
| WEIGHT | 0.45 kgs 0.55 kgs |
|
